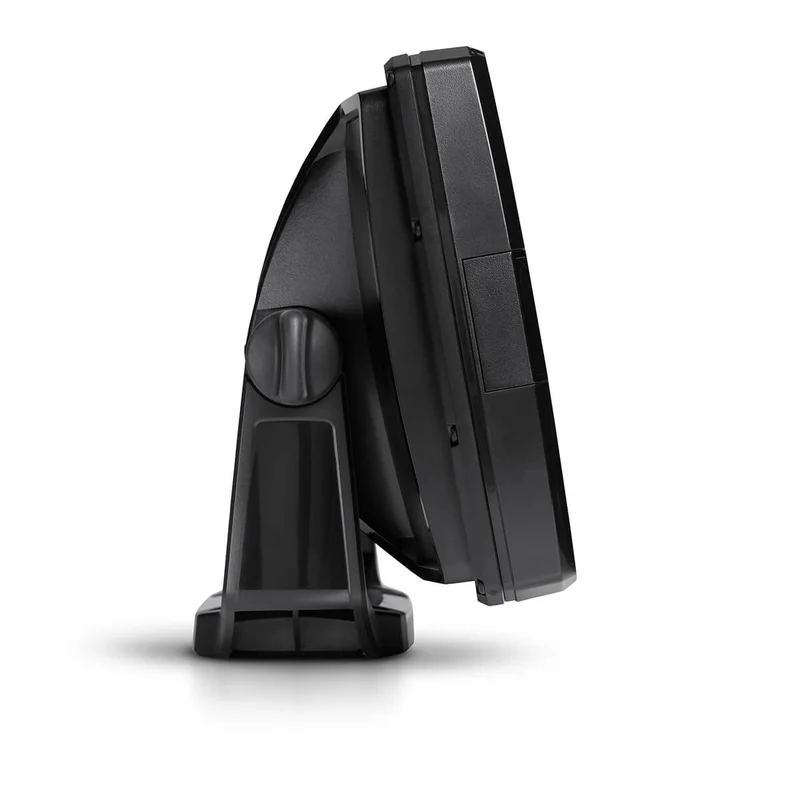

HELIX 7 CHIRP SI GPS G4
– Series: HELIX
– Beeldscherm Size: Diagonaal 7 Inch
– Beeldscherm Pixel Matrix: 1024H x 600V
– Sonar-Standaard: Dual Spectrum CHIRP, CHIRP Down Imaging, CHIRP Side Imaging
– Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
– Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP
– CHIRP – Frequencies Supported: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
– Sonar-Frequencies Supported: 50/83/200/455/800 kHz
– Depth-Sonar: 1,200ft / 365m (standaard transducer) en 3,000ft / 915m (optional 50 kHz)
– CHIRP-Imaging-Frequencies Supported: 455 kHz (420-520 kHz), 800 kHz (790-850 kHz)
– Depth-Down Imaging: 400ft / 107m (455 kHz) en 125ft / 38m (800 kHz)
– Range-Side Imaging (Side-To-Side): 800ft / 214m (455 kHz), 250ft / 76m (800 kHz)
– Interface: Keypad Control
– Features: Built In GPS, Built In Mapping, Dual Spectrum CHIRP, Down Imaging, Side Imaging
– Power Draw: 800 mA
– Power Input: 10.8-20 VDC
– Power Output Peak-to-Peak: 4000 Watts
– Power Output RMS: 500 Watts
– Mount-Standard: Gimbal
– Mount-Standard Size: 10.54″ W x 5.8″ H x 3.68″ D
– Mount-Optional Size: 10.54″ W x 5.44″ H x 1.13″ D
– Transducer Mount Location: Transom
– GPS Chartplotting: Included
– GPS Trackplotting: Included
