Description

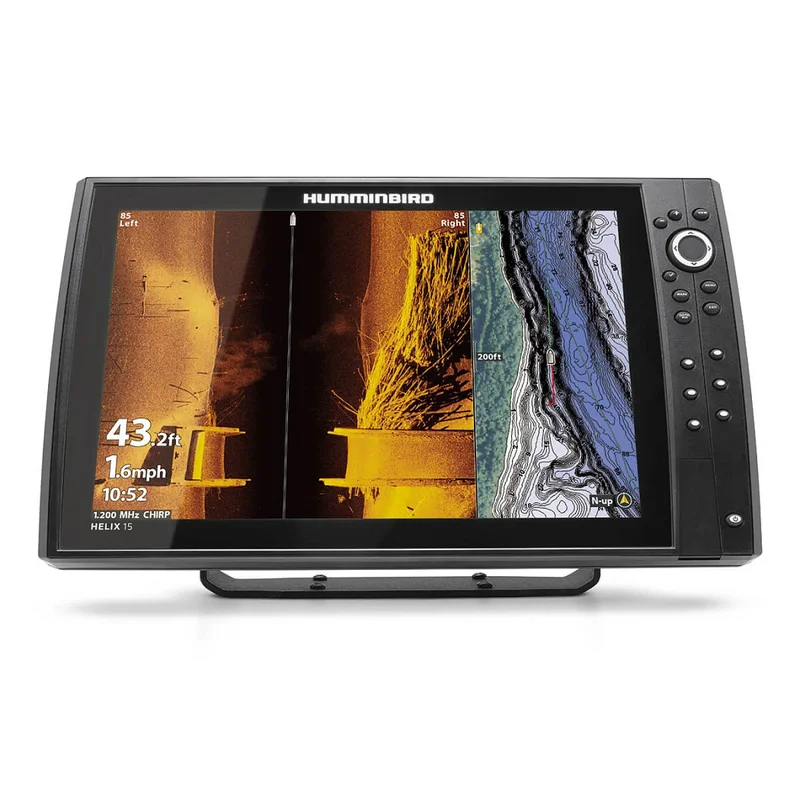

Humminbird HELIX 15 CHIRP MEGA SI+ GPS G4N
– Fishfinder
– Series: HELIX
– Beeldscherm maat: Diagonaal 15,4 Inch
– Afmetingen: 44 × 25,8 × 11cm
– Beeldscherm Pixel Matrix: 1280H x 800V
– Sonar: MSI+ / MDI+ / Dual Spectrum CHIRP
– Sonar-Coverage: 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB
– Sonar-Optional: 50kHz, 50/Low Airmar CHIRP
– Transducer: XM 9 HW MSI T
– CHIRP frequenties: Full 150-200 / Narrow 140-200 / Wide 180-240kHz
– CHIRP Imaging frequenties: 455kHz DI+ (435-535kHz), 455kHz SI+ (405-505kHz), 800kHz DI+ (800-860kHz), 800kHz SI+ (780-840kHz), MEGA DI+ (1100-1200kHz), MEGA SI+ (1050-1175kHz)
– Sonar-Frequencies: 50/83/200/455/800kHz & 1.2MHz
– Depth-Sonar: 360m
– Diepte bereik Down: MDI+/61m – 800kHz/38m – 455kHz/122m
– Zijwaarts bereik: MSI+/122m – 800kHz/76m – 455kHz/244m
– Interface: Keypad Control
– Features: Bluetooth, Built In GPS, Built In Mapping, Down Imaging, Dual Spectrum CHIRP, MEGA Imaging+, Networking, Side Imaging en Wi-Fi
– Power Draw: 4,1A
– Power Input: 10,8-20VDC
– Zekering ampère: 5
– Power Output Peak-to-Peak: 8000 Watts
– Power Output RMS: 1000 Watts
– Mount-Standard: Gimbal
– Mount-Standard Size: 17.63” W x 10.62” H x 4.44” D
– Mount-Optional Size: 17.63” W x 10.35” H x 1.41” D
– Transducer Mount Location: Transom
– GPS Chartplotting: Included
– GPS Trackplotting: Included
– Werkt met optionele Navionics kaarten: Platinum+, Navionics+
