Description

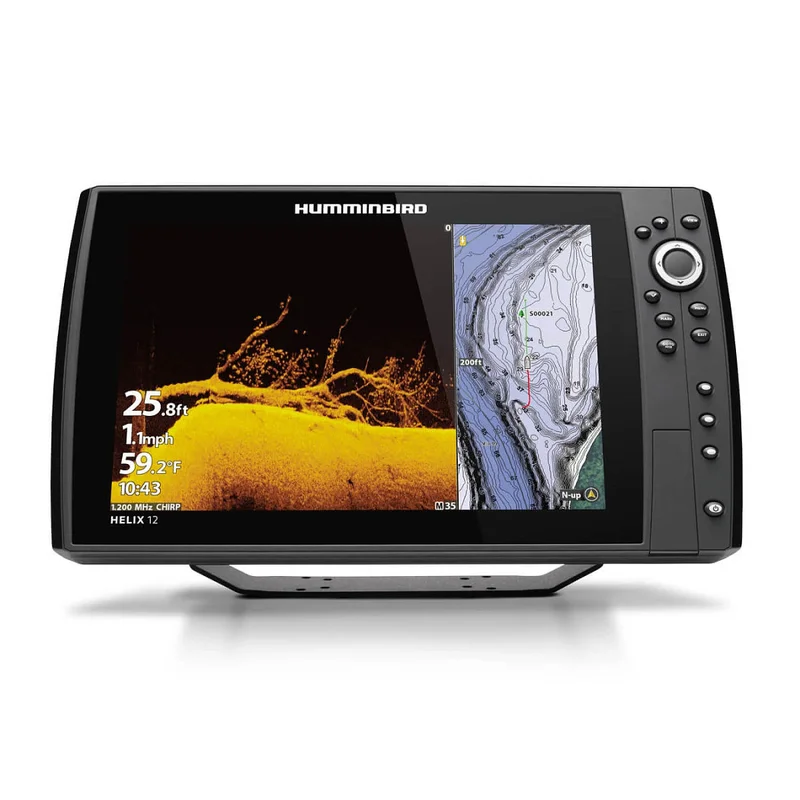

Humminbird HELIX 12 CHIRP MEGA DI+ GPS G4N
– Fishfinder
– Series: HELIX
– Beeldscherm maat: Diagonaal 12,1 Inch
– Afmetingen: 37,7 × 22,8 × 10,4cm
– Beeldscherm Pixel Matrix: 1080H x 800V
– Sonar: MDI+ / Dual Spectrum CHIRP
– Sonar-Coverage: 25°, 42°, 45°, 75° @ -10dB
– Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
– Transducer: XM 9 HW MDI T
– CHIRP frequenties: Full Mode (150-220kHz), Narrow Mode (180-240kHz), Wide Mode (140-200kHz)
– CHIRP Imaging frequenties: 455kHz DI+ (435-535kHz), 800kHz DI+ (800-860kHz), MEGA DI+ (1100-1200kHz)
– Sonar-Frequencies: 50/83/200/455/800kHz & 1.2MHz
– Depth-Sonar: 360m
– Diepte bereik Down: MDI+/61m – 800kHz/38m – 455kHz/122m
– Interface: Keypad Control
– Features: Bluetooth, Built In GPS, Built In Mapping, Down Imaging, Dual Spectrum CHIRP, MEGA Imaging+, Networking en Wi-Fi
– Power Draw: 3,2A
– Power Input: 10,8-20VDC
– Zekering ampère: 5
– Power Output Peak-to-Peak: 8000 Watts
– Power Output RMS: 1000 Watts
– Mount-Standard: Gimbal
– Mount-Standard Size: 14.86″ W x 8.83″ H x 4.25″ D
– Mount-Optional Size: 14.86″ W x 8.52″ H x 1.36″ D
– Transducer Mount Location: Transom
– GPS Chartplotting: Included
– GPS Trackplotting: Included
– Werkt met optionele Navionics kaarten: Platinum+, Navionics+
